22+ Transformer Inrush Current Calculation Xls US. Magnetizing inrush current in transformer is the current which is drown by a transformer at the time of energizing the transformer. Magnetizing inrush current in transformers results from any abrupt changes of the magnetizing voltage.

Applied Sciences Free Full Text Systematization Of The Simulation Process Of Transformer Inrush Current Using Emtp Html from www.mdpi.com

Instead of using the complete fourier series for the exciting current, we will approximate it by a single component at the. Your 1.7 kva transformer has a full load current of 7a at 240v so the maximum inrush could be as high as. Inrush current measurements and simulations.

The inrush current may be up to 10 times higher than normal rated current of transformer.

Unfortunately, they both depend on the resistance of the transformer a transformer is designed for the flux to swing between nearly saturated in one direction, and nearly saturated in the other. Selecting an inrush current limiter requires the use of inrush current calculators. Oil transformer sntr kva ki = ipinrush i 0.2 0.3 0.4 0.5 0.6figure 1where:sntr is the rated power of the transformers;ipinrush is the inrush current of the transformers;intr primary rated current of. @inproceedings{chiesa2010powertm, title=power transformer modeling for inrush current calculation, author={n.

Source: www.electrical4u.net

Unfortunately, they both depend on the resistance of the transformer a transformer is designed for the flux to swing between nearly saturated in one direction, and nearly saturated in the other.

Source: www.scirp.org

Uglešić, elimination of overshooting effects and suppression of numerical oscillations in transformer transient calculations.

Source: www.ametherm.com

Novel approach for reducing transformer inrush currents.

Source: d3i71xaburhd42.cloudfront.net

Inrush current occurs when power is applied to a circuit, in particular circuits with capacitive loads.

Source: s2.studylib.net

Inrush current is nothing but a maximum flow of current at that time of starting electrical equipment.

Source:

If the transformer happens to have some residual magnetism in its core at the moment of connection to the source, the inrush could be even more severe.

Source: www.researchgate.net

There are two inrush currents, capacitor charging, and transformer saturation.

Source: www.electrical4u.net

Magnetizing inrush current in transformer is the current which is drown by a transformer at the time of energizing the transformer.

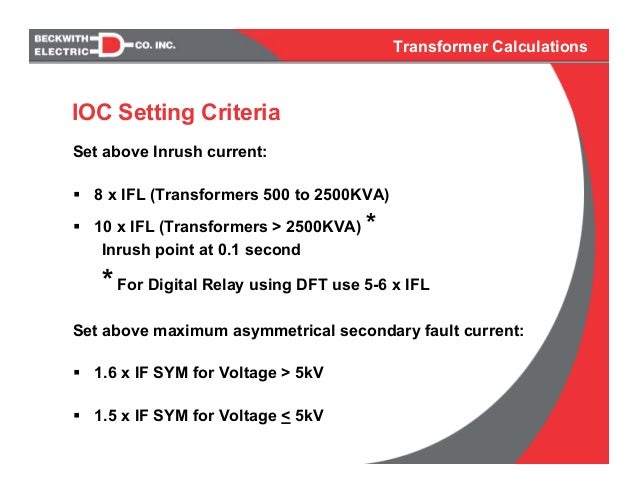

Source: image.slidesharecdn.com

Oil transformer sntr kva ki where:sntr is the rated power of the transformers;ipinrush is the inrush current of the transformers;intr primary rated current of the transformers;tinrush time.
